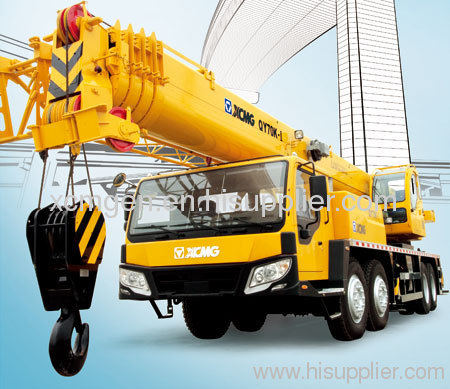

xcmg QY70K-I truck crane QY70K-I manufacturer from China Jinan Sinoheng Import and Export Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY70K-I

Total weight in travel: 43000

Brand Name: xcmg

The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib

Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model	WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108
•Theinnovative jib system adopts embedded block, plug-in boom head andinternational advanced U section jib, which has excellent lifting performanceand safe and reliable lifting work. •The unique stretch and retract technique avoids the bend of thecore pipe and cylinder and the break of the boom caused by misoperation,improving the safety of the operations. •Eight patent techniques ensure the smooth, high efficiency and energyconservation of the lifting, rotation, and luffing systems. •The torque limiter adopts colorful LCD display, realizing the intelligenceof the failure diagnosis. The precision is ahead of the industry. •Adopt the new hydraulic motor with big torque starting point, making thesecondary lifting safer. •The humanity design makes the cab and control cab more spacious, and easy tooperate. •Six unique manufacturing technologies ensure the high quality. •The working condition expands twice. Newly add 5t counterweight.
