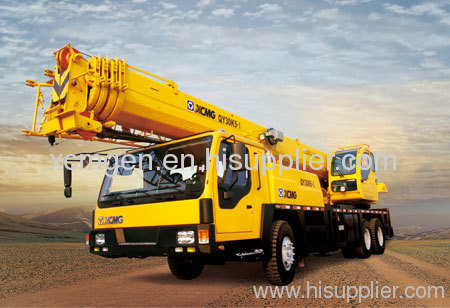

xcmg QY30K5-I truck crane QY30K5-I manufacturer from China Jinan Sinoheng Import and Export Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY30K5-I

Max. travel speed: 80km/h

Brand Name: xcmg

Innovated boom system with inserted sliders, plug-in boom head of patented technology

Dimension	Unit	QY30K5-I
Overall length	mm	12570
Overall width	mm	2500
Overall height	mm	3390
Total weight in travel	kg	32400
Engine model		SC8DK280Q3	WD615.329
Engine rated power		kW/(r/min)	206/2200	213/2200
Max. travel speed			km/h	80
Fuel consumption for 100km			L	40

•The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
•The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
•Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
•The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
•Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
•The humanity design makes the cab and control cab more spacious, and easy to operate.
•Six unique manufacturing technologies ensure the high quality.
•Extend the lifting space and scope, greatly improving the lifting capacity of the front part.
